moisture meter


by Everett 2/5/2018


     Understanding the relationship between wood and moisture is a crucial aspect of having wood flooring installed in your home. Not only can extremes in moisture be disastrous, even mild fluctuations can cause a floor to perform less than ideally. Simply put, one of the main purposes of wood in a tree is to transfer water from the roots to the leaves, which it does through capillary action. In other words, wood is hygroscopic-- its width is relative to its moisture content. In the context of a wood floor, this means that increased moisture content will cause the boards to swell against each other, forcing either cupping, crowning, or even buckling. In extreme cases this can even lift entire cabinets. Conversely, decreased moisture content can cause the boards to shrink, opening up unsightly gaps or even cracking down the middle of the boards in some cases.



Acclimation/moisture readings


moisture readings

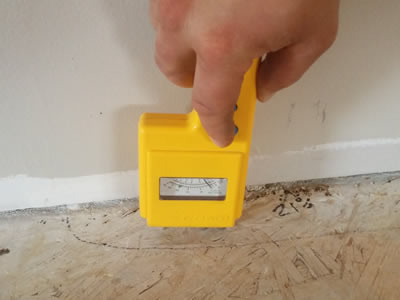

     Many years ago the general rule of thumb was to simply deliver the appropriate amount of wood flooring to the home one week prior to installation. The purpose of this was to allow the wood to reach moisture equilibrium with the house. In many cases this is a perfectly adequate practice and won’t lead to any long term problems, but most professional companies these days take it a step further and use an expensive moisture meter to precisely measure the moisture readings of the wood and the sub floor of the home. These readings must be within a specific range of each other to avoid problems. Unfortunately even using a moisture meter isn’t always a guarantee due to the rapidly changing relative humidity in the shoulder seasons.



Relative humidity


     Apart from anomalies like plumbing and roofing leaks, the moisture content of wood in a home is directly tied to the relative humidity (Rh). Much like humans, wood has a certain Rh comfort level at which it is the most healthy-- between 40% and 60%. As mentioned above, if the Rh gets outside of that range, wood will either expand or contract which is not good for the overall life of the floor. For the best long term health of the floor one should consider regulating the Rh with either a dehumidifier or humidifier, or both, preferably integrated with the home’s HVAC system.

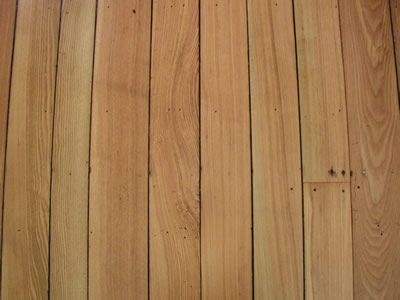

     As mentioned previously, when a wood floor takes on enough moisture, the boards swell against themselves to the point that they have nowhere else to go but up (or down). Apart from the most extreme cases of actual buckling, the most common manifestation of this occurring is either cupping or crowning. If the moisture is coming from underneath the floor, the bottom surface of the boards will expand more than the top surface and each board will develop a curl to it, which is called cupping. The boards appear concave when viewed from above, think of a child’s drawing of the ocean. When the moisture above the floor is higher, the opposite reaction occurs, the top surface of the boards expand more than the bottom. In this case each board appears convex when viewed from above.


     In the cases when this results from an abnormal change in the moisture content of the floor, it will usually flatten back out once equilibrium is restored. This is why one of the biggest mistakes one can make is sanding a cupped or crowned floor flat during a time when it’s only temporarily deformed. This can result in the opposite effect when the floor returns to its original shape. For example, if a temporarily cupped floor gets sanded flat, it will appear to be crowned when it reaches equilibrium. This could always be rectified with yet another sand job but much of the life of the floor would be removed in the process, not to mention the hassle of having a floor sanded twice. A cupped or crowned floor should be assessed by a professional to determine whether it’s only temporarily, or permanently deformed.



Winter months vs summer months



     In areas with radical seasonal changes in environmental conditions, such as Indiana, often times a wood floor will change with the seasons too. You may notice slight gaps in the winter time that close up in the summer, or even a little bit of subtle cupping during the summer months that flatten out in the winter. Sometimes the floor has been installed for decades and there’s just nothing that can be done about this. Given the choice, the floor that gaps a little bit in the winter is preferable to one that cups in the summer. This is why installing a wood floor in the dead of the winter can sometimes be problematic. During a particularly dry spell, wood that has shrunk prior to installation gets “locked in place” when nailed down tight during the installation. Then when the Rh increases in the summer, the floor expands and you get cupping. Contrast that with an installation during the peak humid time of year. When the dry season hits, the floor shrinks and opens up gaps. This is all mitigated to some degree by regulating the Rh in the home as mentioned, but the time of year should still be considered when planning a wood floor installation.
